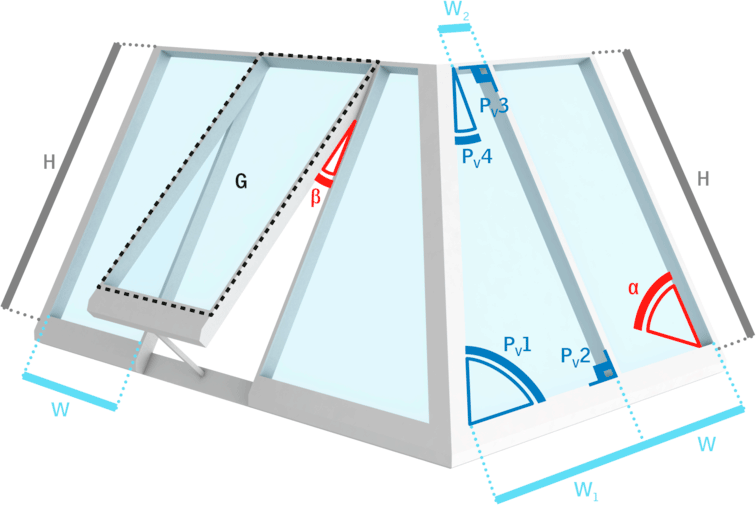

Fixed, comfort and smoke evacuation panels outside the scope of EN 12101-2 Double glazing W Module width 264 mm – 1200 mm (fixed or crossbar solution) Panel width Module width – 4 mm W1-2 Shaped panel Measurement limitations per shaped type, please contact your local VELUX sales office H Panel height 260 mm – 2900 mm Ratio W/H: 1:6 or 6:1 G Panel area** max. 2 m2 β Opening angles 0° – 45° (max. opening to horizontal) Pv Corner angles*** Fixed panels 25° - 155° Venting panels only with 90° corners α Installation pitch 15° – 90° (ponding groove if pitch is under 25°)* Triple glazing W Module width 256 mm – 1200 mm (fixed or crossbar solution) 651 mm – 1200 mm (hidden actuator) Panel width Module width – 6 mm W1-2 Shaped panel Measurement limitations per shaped type, please contact your local VELUX sales office H Panel height 250 mm – 3500 mm Ratio W/H: 1:6 or 6:1 G Panel area** max. 3 m2 β Opening angles 0° – 45° (max. opening to horizontal) Pv Corner angles*** Fixed panels 25° - 155° Venting panels only with 90° corners α Installation pitch 15° – 90° (ponding groove if pitch is under 25°)* *When installing in pitches below 25°, the panels will be manufactured with a ponding groove in the bottom of the panel to minimise ponding water on the glazing. ** Based on panel width x height *** For fixed panels only
Smoke venting panels, in accordance with EN 12101-2 Double glazing W Module width 504 – 1200 mm (crossbar solution) Panel width Module width – 4 mm H Panel height 600 mm – 2900 mm Ratio W/H: 1:6 or 6:1 G Panel area** max. 2 m2 β Opening angle 0° – 45° (max. opening to horizontal) α Instalation pitch 15° – 60° (ponding groove if pitch is under 25°)* Glazing weight max. 40 kg/m2 Wind deflector Not available Solutions Be aware that the above guidance only applies to some solutions, please contact your local VELUX Sales office Triple glazing W Module width 506 mm – 1200 mm (crossbar solution) 851 mm – 1200 mm (hidden actuator) Panel width Module width – 6 mm H Panel height 500 mm – 3500 mm (crossbar solution) 500 mm – 2366 mm (hidden actuator) Ratio W/H: 1:6 or 6:1 G Panel area** max. 2 m2 β Opening angle 8° – 45° (max. opening to horizontal) α Instalation pitch 15° – 50° (ponding groove if pitch is under 25°)* Glazing weight max. 50 kg/m2 Wind deflector Available in size 200 and 400 mm high Solutions Be aware that the above guidance only applies to some solutions, please contact your local VELUX Sales office *When installing in pitches below 25°, the panels will be manufactured with a ponding groove in the bottom of the panel to minimise ponding water on the glazing. ** Based on panel width x height
Glazing Panel solutions Explore the full range of glazing panel solutions - from Mono- to Dual pitched, Pyramids and Step solutions Explore solutions
