VELUX Glazing panels

Bespoke glass system with prefabricated panels

A bespoke glass system with slim and shallow profiles for optimal daylight influx. VELUX Glazing Panels enable the creation of a wide range of rooflight designs from flush installations in a pitched roof to pyramids on a flat roof.

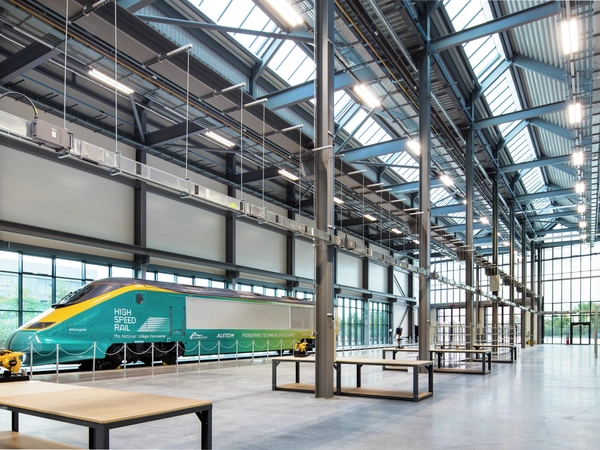

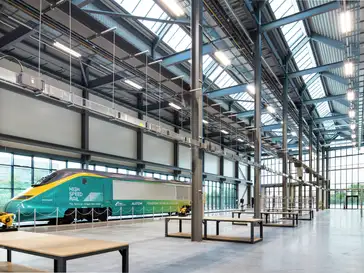

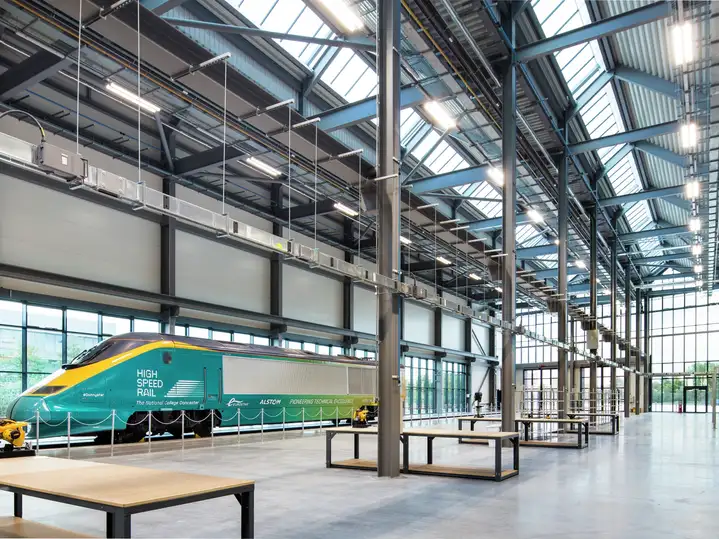

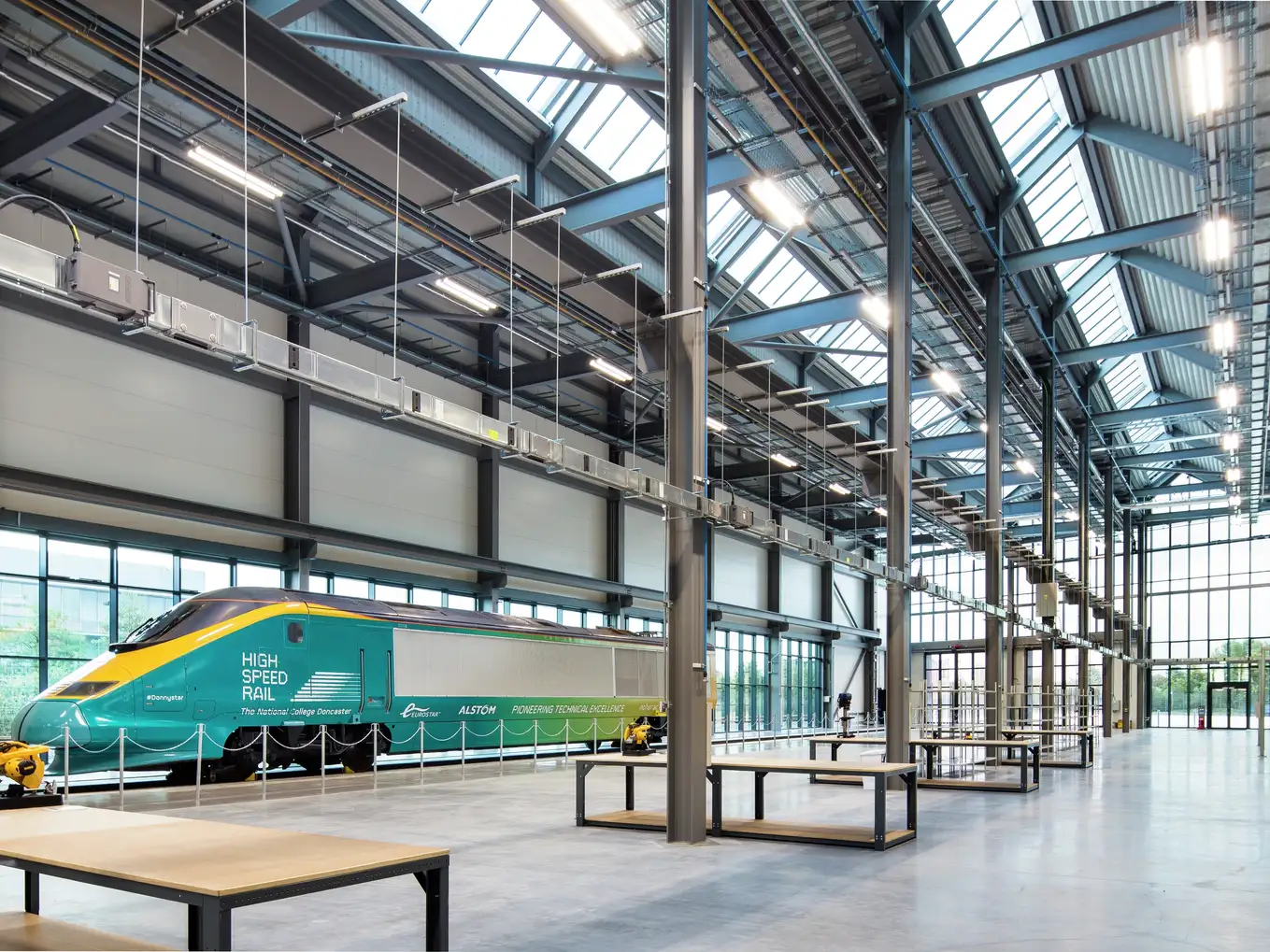

Train facility interior with high-speed rail model and large windows.
Mono-pitched solution in the National College for High Speed Rail, UK

In short

VELUX Glazing Panels can be configured in multiple solutions, by combining the various installation options with gable and corner solutions. The bespoke nature of the system enables you to design almost any rooflight for public and commercial buildings.

Our glazing panels are delivered with a 10-year guarantee on panels and flashings. Actuators and electrical components that are a part of the glazing panel system come with a 3-year guarantee.

Glazing panel specialists offer support throughout design, specification and installation, including a project specific sub-construction drawing with measurements for the outer geometry.

The panels and key accessories are prefabricated off-site, thus facilitating a quick and safe installation. Please note that sub-constructions are not included in the VELUX offering.

The advantages of a bespoke yet prefabricated glass system

VELUX Glazing Panels offer several advantages when it comes to designing, specifying, installing and operating glass systems.
Design your own glass roof - you can draw bespoke solutions, including shaped panels – ideal for refurbishment projects
Elegant design with slim and shallow profiles for optimal daylight influx
Almost non-protruding glass solution in a sloped roof, which creates a clean design
Glazing panels can provide natural ventilation and/or smoke ventilation in accordance with EN 12101-2 — can even be post-mounted, since the actuator is installed on site
CAD tools enable fast and intuitive design of your glass system in your drawing programme
Modern city buildings with large glass roof structures bringing daylight into flat-roof interiors.

Overview of the solution possibilities with
VELUX Glazing Panels

1 — Hip

A hip is an external facing corner solution used to connect two adjacent sloping sides of a rooflight. It is commonly used to create hipped gables in dual-pitched solutions.

2 — Valley

A valley is an internal facing corner solution used in the intersection between two individual rooflights. It can be used to connect two adjacent buildings.

3 — Vertical glass gable

A vertical glass gable is a section of vertical glazing made up of one or more panels located at the end of a mono-pitched solution or dual-pitched solution.

4 — Step solution

VELUX Glazing Panels can be configured in a step by installing multiple rows of panels on top of each other using a structural beam to connect the rows.

5 — Pyramid

A pyramid comprises three or more triangular glazed sides, connected using hipped corner solutions. For a small solution, it is possible to create a self-supporting pyramid, for bigger solutions, a support structure with hips and beams is required.

6 — Mono-pitched

Mono-pitched solutions are single rows of glazing panels installed between 15-90° on either an upstand (on a flat roof), in a saw tooth roof or as a non-protruding installation in a sloped roof. Solutions mounted against a vertical wall can be installed in pitches between 15-60°.

7 — Dual-pitched

Dual-pitched solutions are two rows of glazing panels connected at the top, creating a ridge. For self-supporting solutions, the installation pitch is between 25-60°. Furthermore, it is possible to install a dual-pitched solution with a girder at the ridge.
Explore in detail the different glazing panel solutions
Modern building with large glass roof panels, urban setting.

Mono-pitched solutions

A row of glazing panels for sloped, flat and saw tooth roofs.

Suitable for:

  • Sloped, flat and saw tooth roofs
  • Flat and textured roofing material
  • Opening width is unlimited
  • Max. panel height is 3000mm / max. opening height is 2920mm
  • Installation pitch between 15-90°
  • Solutions mounted against a vertical wall can be installed between 15-60°
Modern building with flat roof and large glass panels.

Dual-pitched solutions

Two rows of glazing panels connected at the top for sloped and flat roofs

Suitable for:

  • Flat roofs and at the top of a sloped roof
  • Flat and textured roofing material
  • Opening width in roof min./max. 230-6300 mm
  • Installation pitch between 25-60°
Glass pyramid roof structure with large panels in urban setting.

Pyramid solutions

Bespoke daylight solution with glazing panels

Suitable for:

  • Flat roofs
  • Flat roofing material
  • For small and large roof openings
  • Installation pitch between 25-60°
Pyramid-shaped glass roof with large panels, modern architectural design.

Step solutions

Multiple rows of glazing panels connected for large daylight influx

Suitable for:

  • Flat and sloped roofs
  • Flat and textured roofing material
  • For extra large roof openings
  • Installation pitch between 25-60°
Glazing information
Cross section of a glass panel showing its layered structure.
Double glazing (panel joint height: 82 mm, panel joint width: 50 mm)
Glazing unit
Open VELUX roof window with sleek frame and glass panels.
Double glazing with low emissivity coating (LowE)
Glazing options

Installation process

Components of a VELUX roof window, modular design displayed.
Panel with accessories for installation, triple glazing
Attachment to the roof principles
VELUX roof window installation process with detailed components.

Installation principle — double glazing
Installation of VELUX roof window, showing components and design.

Installation principle — triple glazing

Sub-construction

A hassle-free installation starts with the sub-construction

VELUX Glazing Panels require an accurate, fixed and dimensioned sub-construction. For each project, a specific sub-construction drawing will be prepared with measurements for the outer geometry of the sub-construction.
The strength of the sub-construction must be calculated for the individual project, based on the building design and application size. To be able to correctly install VELUX Glazing Panels, the sub-construction must be parallel to the panel itself.

The sub-construction is not part of the bespoke glazing system, and the VELUX Group does not take responsibility for the sub-construction.

VELUX roof window in a flat ceiling, modern design.
Sub-construction concept for VELUX Glazing Panels, the sub-construction must be parallel to the panel itself.

Get inspired by our case studies

Corridor with high-pitched glass roof and stone walls, natural light entering.
Hotels / Conference centres

The Bodmin Jail Hotel

VELUX Glazing Panels help transform Victorian Jail into hotel

Cornwall, United Kingdom — 2021Read more
Shopping mall interior with skylight and dining options.
Retail / Shopping malls

Metrocentre

Installation of VELUX Glazing Panel rooflight solutions enhance busiest hub at the Metrocentre

Gateshead, Newcastle, United Kingdom — 2016Read more
Similar product groups in this category
Office space with VELUX roof window, glass railings, and wooden floor.
Modular Skylights
Interior space with triangular glass roof panels and metal framework.
Structural glazing system
What do you want to do next?
Do you need help?
Visit our Download Centre
Do you need inspiration?

Frequently asked questions

What types of solutions do glazing panels provide?

VELUX Glazing Panels offer versatile solutions to meet a broad spectrum of architectural needs. They can be used in straightforward configurations with standard rectangular panels or integrated into more complex designs incorporating triangular, trapezoidal, pentagonal, hexagonal, or other custom-shaped glass panels.

What are the opening options available for glazing panels?

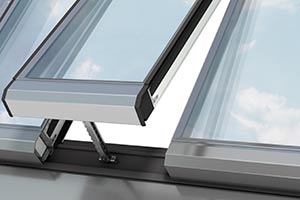

VELUX Glazing Panels can be equipped with either a crossbar or a fully concealed motor (available for the triple-glazed version). The crossbar supports both chain and spindle motors, while the concealed option features a specially developed integrated chain motor. Notably, the opening panels require no additional framing, resulting in cost-effective, aesthetically pleasing solutions without compromising U-values or airtightness. A unique advantage of this system is its adaptability—fixed panels can be retrofitted to openable units even after installation.

What are the frame dimensions of glazing panels?

The glazing panels are engineered with some of the slimmest frames on the market. The visible frame dimensions for double-glazed panels are 50 mm in width and 74 mm in height. For triple-glazed panels, the dimensions are 52 mm in width and 98 mm in height. These minimal profiles not only enhance visual appeal but also allow greater levels of natural daylight to enter the space.

Does installation require on-site handling of glass?

No. All panels are delivered fully pre-assembled, eliminating the need for any glass handling on site. This approach enhances health and safety, ensures factory-controlled quality, and allows for efficient installation in any weather conditions, significantly reducing on-site labour time.

Is the product reliable?

Yes, this bespoke glass roof system is highly reliable. Originally developed under the VITRAL brand, the concept dates back to the early 1950s and has been continuously refined to incorporate modern technologies while maintaining a strong focus on quality and design. Today, it represents one of the most established and dependable daylighting solutions available on the market.
