Pyramid Solutions (formerly Vitral A74 and A98 Roof Glazing)

Bespoke daylight solution with glazing panels

Suitable for:

  • Flat roofs
  • Flat roofing material
  • For small and large roof openings
  • Installation pitch between 25-60°

Key benefits:

  • Bespoke glass solution for large roof openings
  • Slim and shallow profiles for optimal daylight influx
  • No outside visible difference between fixed and venting panels
VELUX Glazing Panels Pyramid in Metro Shopping Centre, Great Britain.
See gallery

Related documents and links

Products details

  • In short
    A pyramid is comprised by multiple sides of panels connected using outward facing hipped corner solutions. For smaller solutions, it is possible to create a self-supporting pyramid and for bigger solutions, a structural construction with hips and beams is required. The panels can be installed in pitches between 25-60°.

    The panels and main parts of the accessories are pre-fabricated off-site, thus facilitating a quick and safe installation.

    VELUX Glazing Panels are delivered with a 10-year guarantee on panels and flashings. Actuators and electrical components that are a part of the glazing panel system come with a 3-year guarantee.

    VELUX Glazing Panel specialists offer support throughout design, specification and installation, including a project specific sub-construction drawing with measurements for the outer geometry.
    Please note that sub-constructions are not included in the VELUX offering.

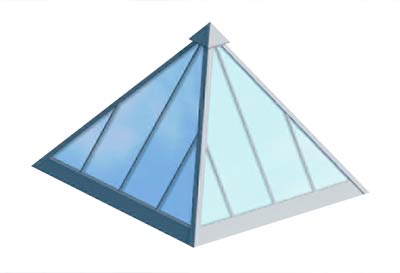

    Dual pitched glazing panels in steps with hipped gables

    Pyramid solution

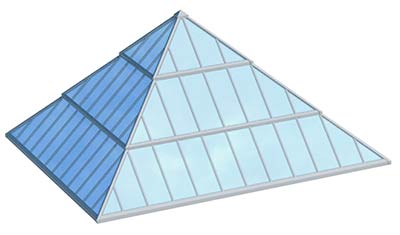

    Glazing pyramid with steps

    Pyramid solution with multiple steps

  • Details
    The prefabricated panel consists of aluminium frame profiles with a glazing unit sealed in using a UV resistant sealant material. When the panels are joined together on-site, the outer gasket and an inside drainage profile must be mounted to secure drainage.
    The glazing panel system is delivered with installation profiles, gaskets and flashings, ensuring a weathertight solution.

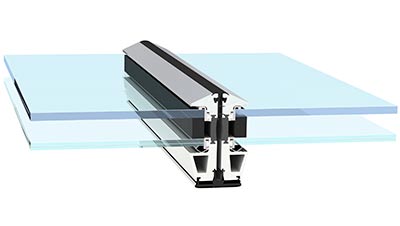

    Modular rooflight monolight module construction

    Double glazing
    Panel joint height 82 mm
    Panel joint width 50 mm

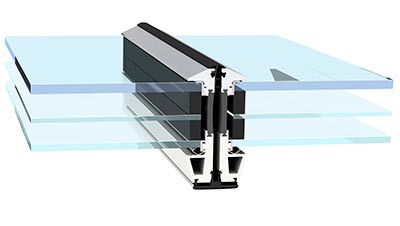

    Triple glazing frame profile cut for glazing panels

    Triple glazing
    Panel joint height 106 mm
    Panel joint width 52 mm

    Venting VELUX Glazing Panels have several options of actuators when specifying the panels. It is possible to convert a rectangular fixed panel to a venting panel by post-installing a visible actuator and a crossbar.
  • Function and sizes
    VELUX Glazing Panels are available in a wide range of sizes and functionalities:

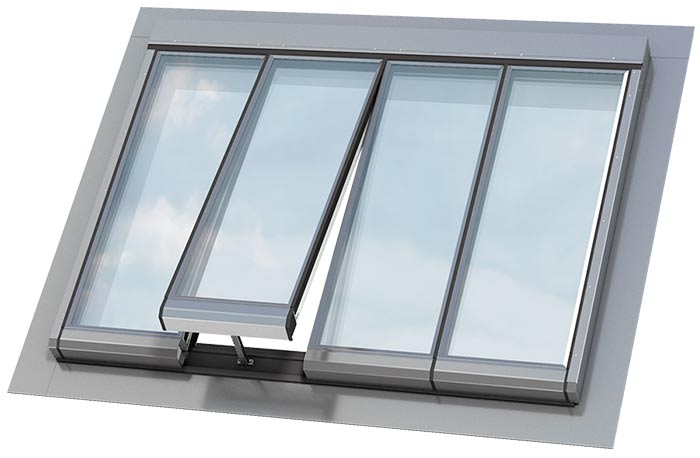

    Illustration of VELUX Glazing Panel mono pitched solution
    1. Fixed panel – rectangular or shaped
    2. Motorised comfort venting panel
    3. Motorised smoke venting panel

    Sizes

    See size possibilities for fixed and venting modules.
    Go to size options

    VELUX Glazing Panels have a recommended minimum installation height of 2.5 m above floor level (inside) and ground level (outside). In case of installation below that level, safety measures must be applied by the installer/user to prevent serious injury. No instruction or measure can eliminate the inherent hazards resulting from installation heights below 2.5 m.
  • Glazing

    VELUX Glazing Panels come with standard low-energy double or triple glazing with the following features:

    • Insulated glazing unit (Ug values down to 0.5 W/m2K)
    • Toughened outer glass (optional)
    • Heat soak tested (optional)
    • Laminated inner safety glass
    • Warm edge spacer (protects insulation properties over time and minimizes the risk of condensation at pane edges)
    • Sun protection coating (optional)
